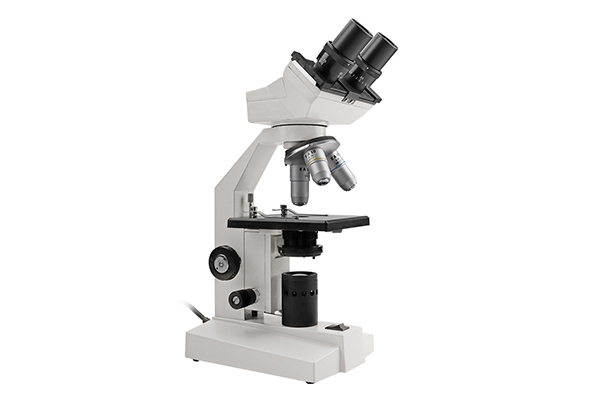

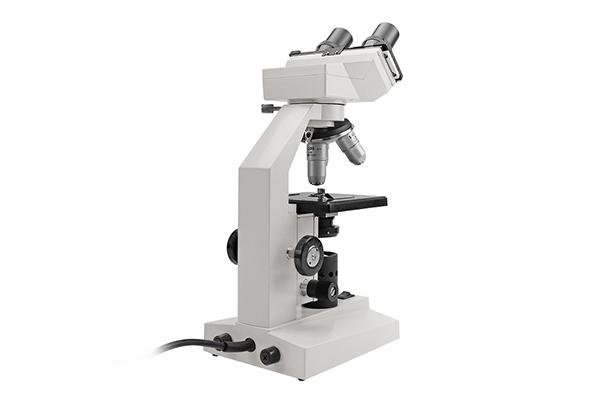

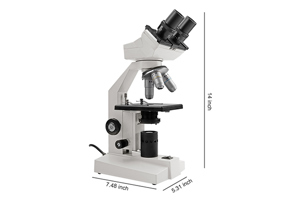

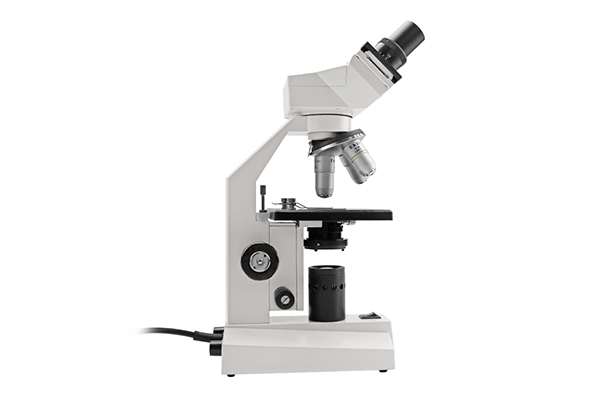

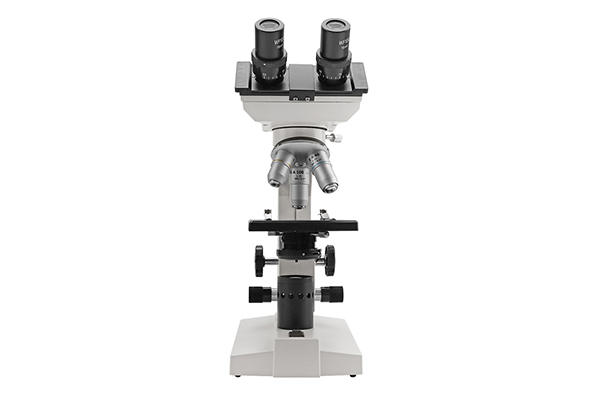

BM-100FLBiomicroscope

Parameter

Eyepiece: Wide angle eyepiece, WF10X or WF16X achromatic objective lens: 195mm DIN achromatic objective lens 4X, 10X, 40X, 100X (S) Tube: Mechanical tube length 160mm, massage type binocular observation head 45 ° tilt, 360 ° rotatable Lighting system: Φ 42mm flat concave double-sided reflector or built-in electric lighting 110V or 220V, 20W pixel lamp (LED)

Focusing mechanism: coarse and fine adjustment axis separation

Carrier platform: 110x120mm simple platform

Light bar: 5-hole disc-shaped light bar (spiral adjustable Abbe spotlight N.A.1.25, with variable light bar) Spotlight: N.A.0.65 single-chip spotlight Options: mobile ruler, mobile platform, polarizing device, photography camera device.
