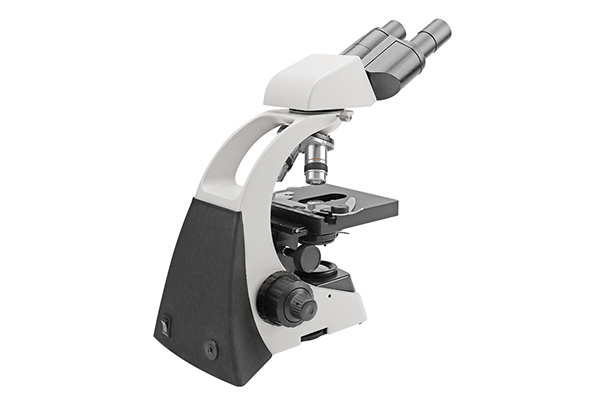

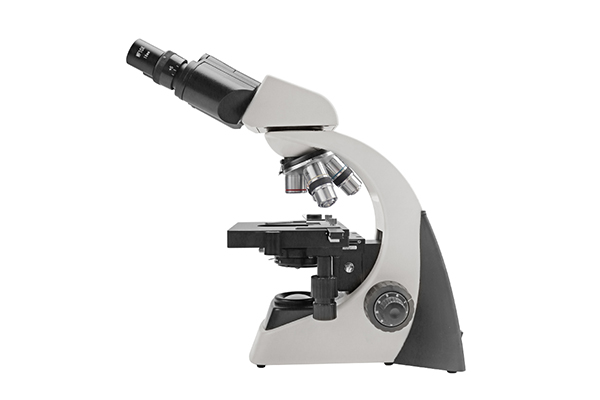

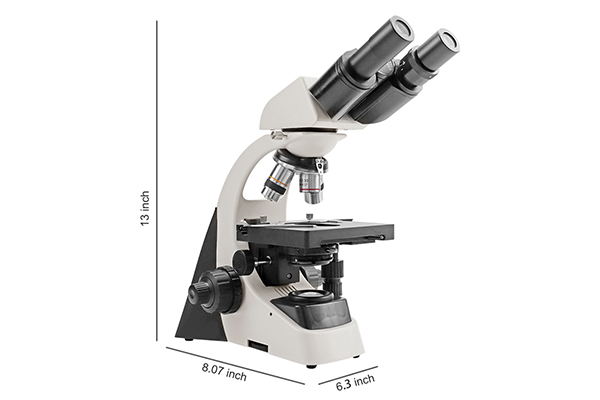

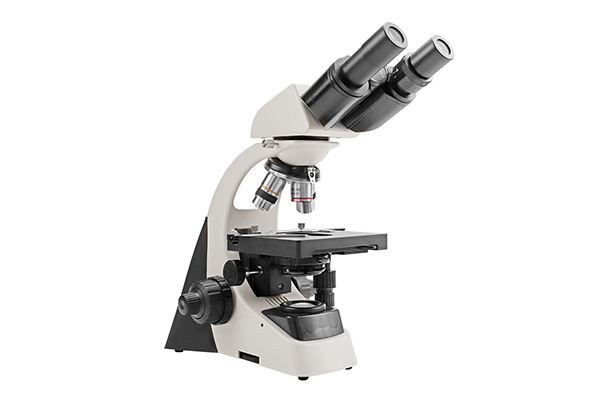

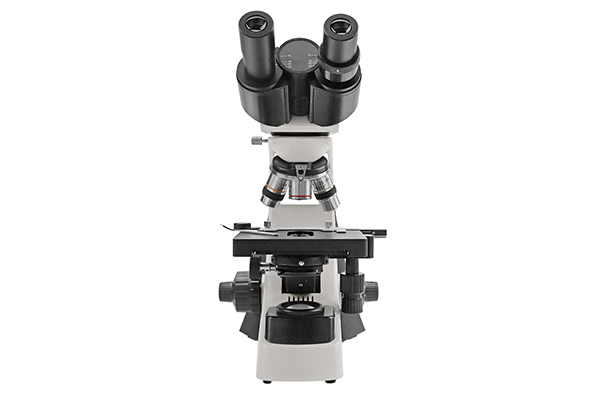

SM-2010DBiomicroscope

Parameters:

Total magnification: 40-1000X

Eyepiece: Wide field flat field eyepiece, WF10X achromatic objective lens: 45mm DIN achromatic objective lens 4X, 10X, 40X (S), 100X (S, Oil) tube: hinged binocular head, adjustable pupil spacing of 55-75mm, 30 ° tilt, 360 ° rotatable illumination system: built-in dimming 6V/20W halogen lamp (or incandescent lamp, fluorescent lamp, LED lamp) light bar: 2-30mm variable light bar with 32 color filters spotlight: N.A.1.25 Abbe spotlight focusing mechanism: coarse and micro coaxial, sales range: 14mm stage: 125x125mm double-layer mechanical platform, X-Y direction movement range: 60x40mm.
