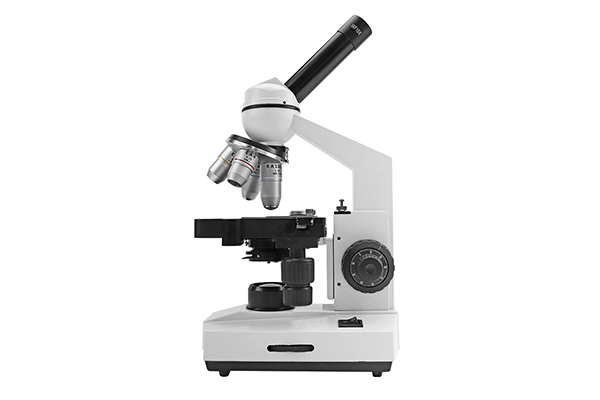

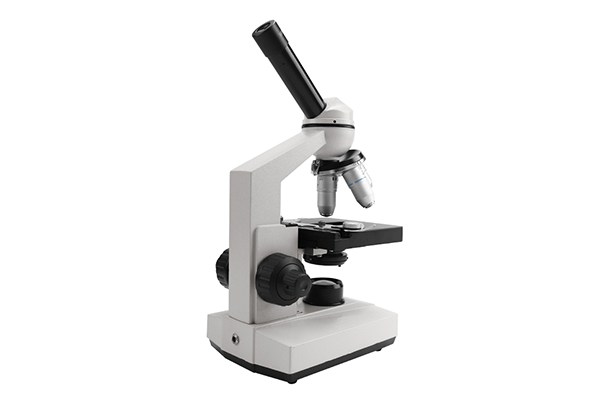

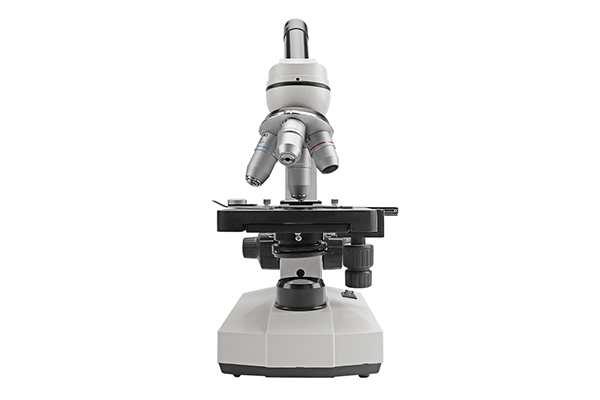

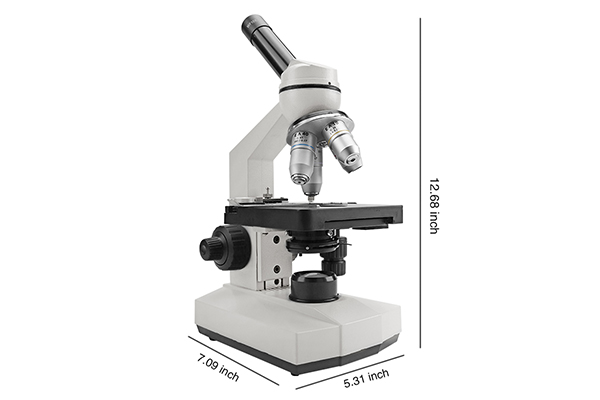

XSP-70C Biomicroscope

Parameters:

Total magnification: 40X~400X

Eyepiece: Wide field flat field eyepiece WF10X

Achromatic objective lens: 45mm DIN Achromatic objective lens 4X, 10X, 40X (S) Tube: monocular head, 45 ° tilt, 360 ° rotatable Focusing mechanism: coarse and micro coaxial, adjustable sales range: 14mm Light bar: Φ 2- Φ 30mm Variable light bar with Φ 32mm color filter Spotlight: N.A.1.25 Abbe Spotlight Illumination system: built-in 20W incandescent lamp (or halogen lamp, fluorescent lamp, LED lamp) Stage: 115x120mm with slicing and pressing double-layer mechanical platform, X-Y direction movement range 60x20mm
