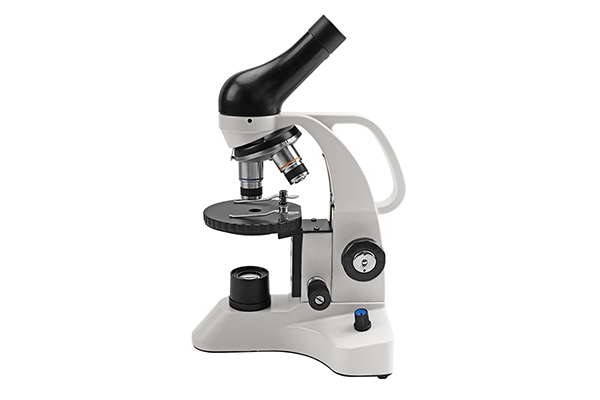

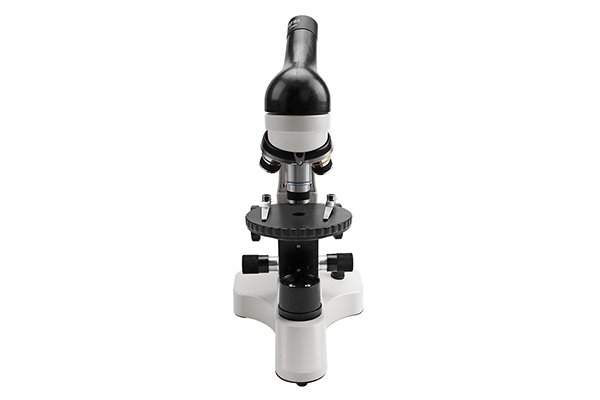

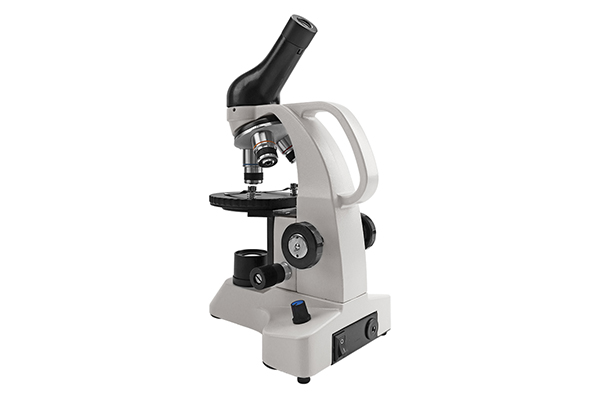

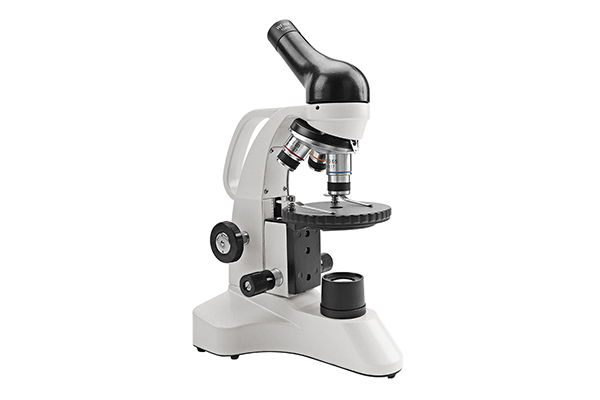

XSP-201Biomicroscope

Parameters:

Total magnification: 40-640X

Eyepiece: wide-angle, WF10X/16mm，WF16X/11mm

Achromatic objective lens: 4X, 10X, 40X (bullet) tube: monocular, 45 ° tilt, 360 ° rotatable converter: three hole tilt

Focusing lens: frosted glass, single lens

Focusing mechanism: coarse and fine adjustment of different axes, coarse adjustment of 10mm, fine adjustment of 1.8mm. Stage: movable circular platform, slicing clip size of 90mm, surrounding movement range of 6mm. Light source: LED cold light source, 1W, rechargeable, adjustable brightness. Power supply: external switch power supply (charger), AC95V-250V
