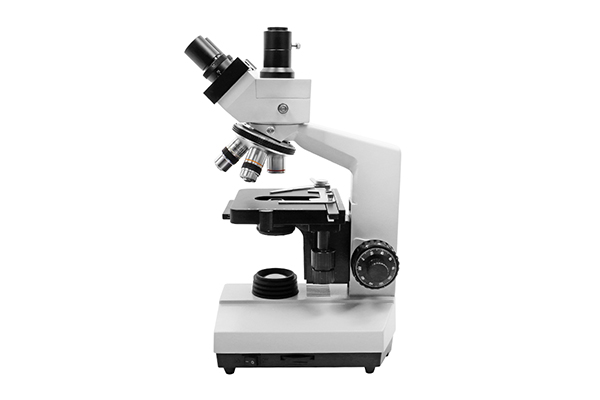

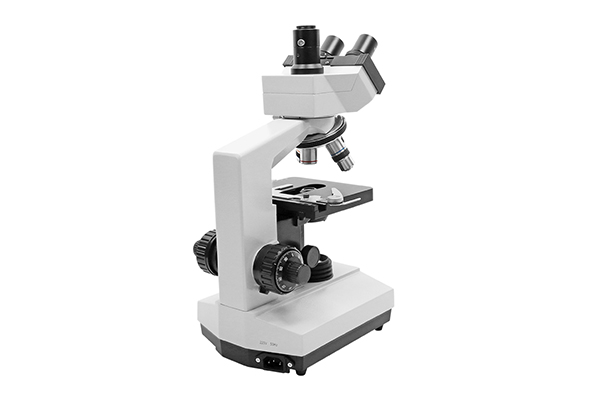

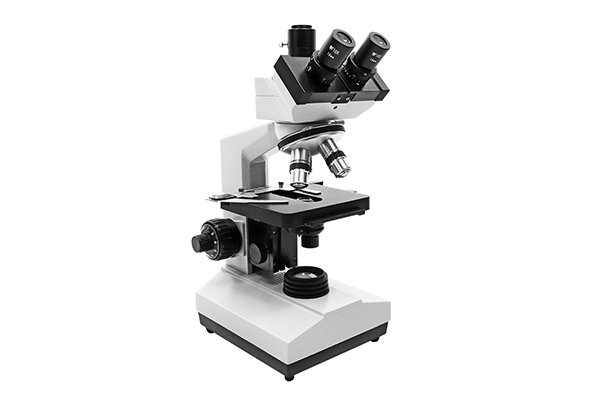

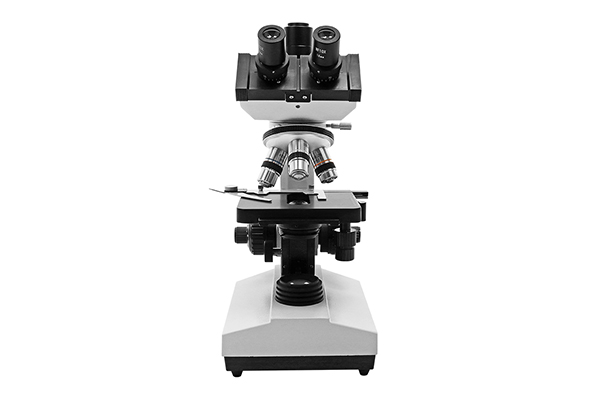

XSZ-107BN-T Biomicroscope

Parameters:

Total magnification: 40-1600X

Eyepiece: Wide field flat field eyepiece, WF10X, WF16X Achromatic objective: 45mm DIN Achromatic objective, 4X, 10X, 40X (S), 100X (S, Oi) Tube: Skateboard triple head, adjustable pupil spacing of 55-75mm, 45 ° tilt, 360 ° rotatable Illumination system: Built in dimming 6W/20W Halogen light bar: Variable light bar from 2 to 30mm, with 32 color filters Focusing lens: N.A.1.25 Abbe focusing lens

Focusing mechanism: Coarse micro coaxial, focusing range: 25mm, accuracy: 0.002mm Stage: 142x132mm Double layer mechanical platform, X-Y direction movement range: 70x50mm.
