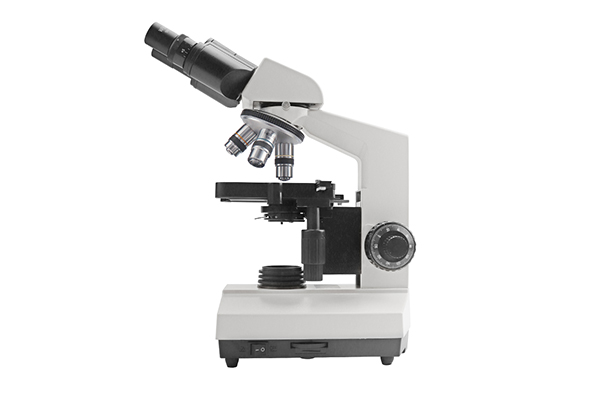

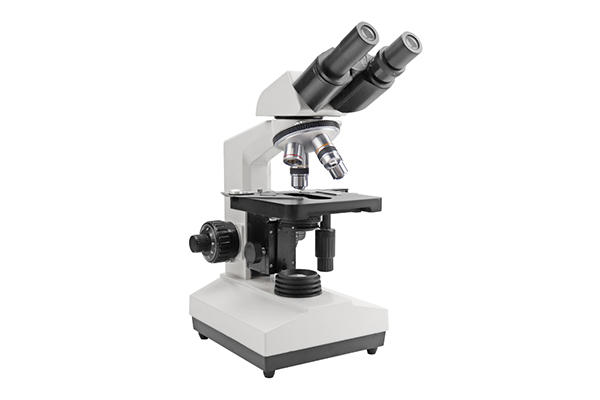

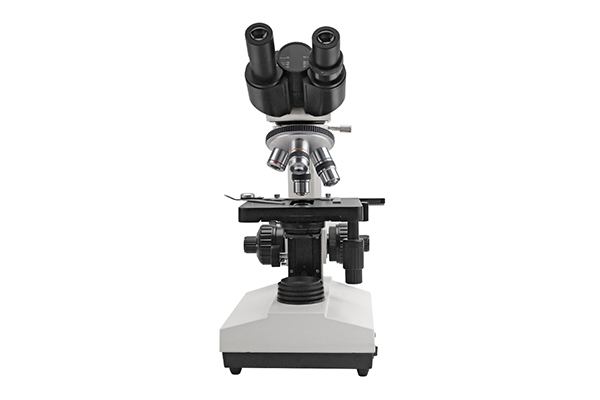

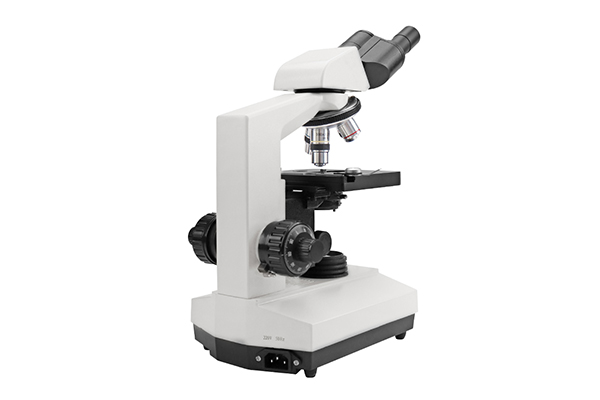

XSZ-108BN Biomicroscope

Parameter:

Total magnification: 40-1600X

Eyepiece: Wide field flat field eyepiece, WF10X, WF16X achromatic objective lens: 45mm DIN achromatic objective lens, 4X, 10X, 40X (S), 100X (S, Oil) tube: hinged binocular head, adjustable pupil spacing of 55-75mm, 30 ° tilt, 360 ° rotatable illumination system: internal dimming 6V/20W halogen light bar: variable light bar from 2 to 30mm, with a color filter of 32. Focusing lens: N.A.1.25 Abbe focusing lens. Focusing mechanism: coarse and fine coaxial, focusing range: 25mm, accuracy 0.002mm. Stage: 142x132mm double-layer mechanical platform, X-Y direction movement range: 70x50mm
