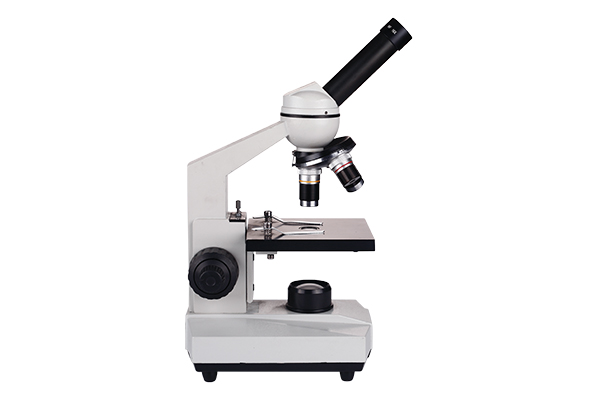

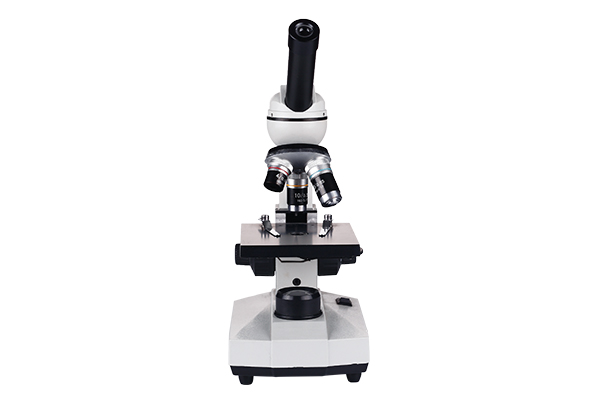

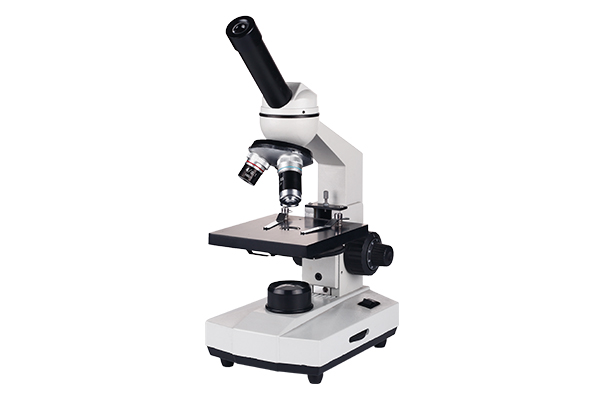

XSP-70B Biomicroscope

Parameters:

Total Magnification: 40X～400X

Eyepieces: Widefield Planocular Eyepieces WF10X

Achromatic Objectives: 45mm DIN Achromatic Objectives 4X, 10X, 40X (S)

Tube: Monocular Head, 45° Inclined, 360° Rotatable

Focusing Mechanism: Coarse and Fine Focus on Same Axis, Focusing Range: 14mm

Diaphragm: 5-Hole Rotary Diaphragm

Condenser: N.A. 0.65 Single-Lens Condenser

Illumination System: Built-In 20W Incandescent Lamp (Or Halogen Lamp, Fluorescent Lamp, LED Lamp)

Stage: 110mm x 120mm Simple Single-Layer Platform with Specimen Clamp
