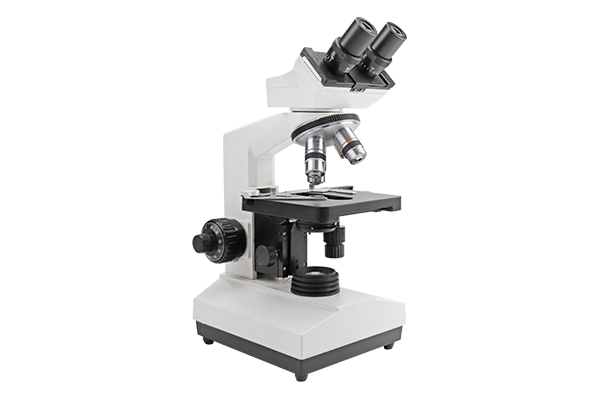

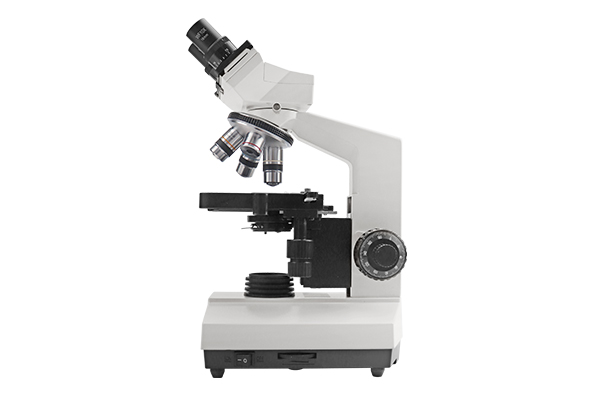

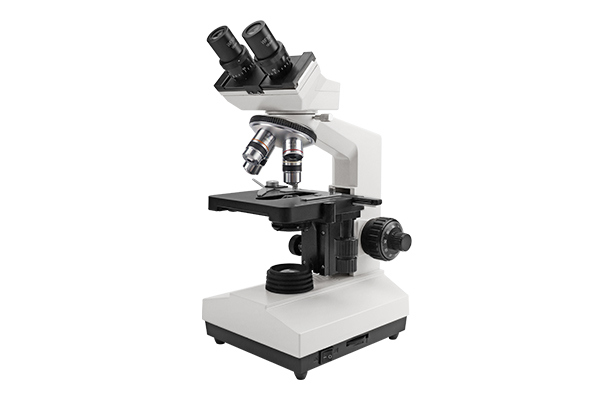

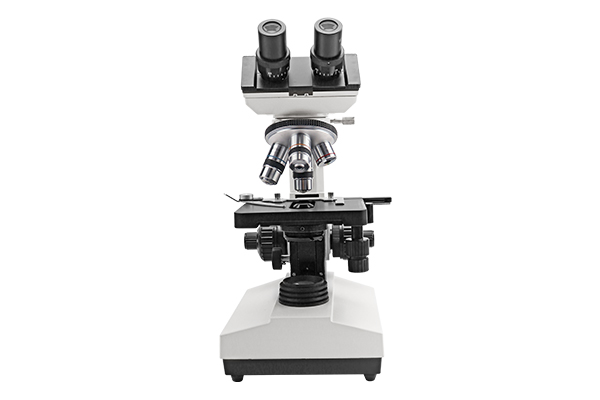

XSZ-107BNBiomicroscope

Parameters:

Total Magnification: 40X - 1600X

Eyepieces: Widefield Planocular Eyepieces, WF10X, WF16X

Achromatic Objectives: 45mm DIN Achromatic Objectives, 4X, 10X, 40X (S), 100X (S, Oil)

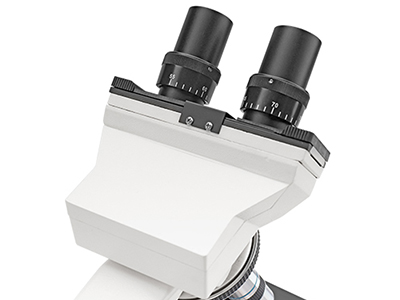

Tube: Sliding Binocular Head, Pupil Distance Adjustable from 55mm to 75mm, 45° Inclined, 360° Rotatable

Illumination System: Built-in Dimmable 6V/20W Halogen Light

Diaphragm: Φ2mm - Φ30mm Variable Diaphragm with Φ32mm Filter

Condenser: N.A. 1.25 Abbe Condenser

Focusing Mechanism: Coarse and Fine Focus on Same Axis, Focusing Range: 25mm, Precision: 0.002mm

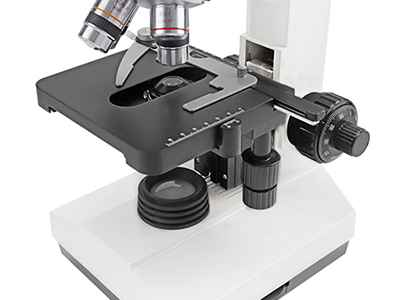

Stage: 142mm x 132mm Dual-Layer Mechanical Stage, X-Y Movement Range: 70mm x 50mm
