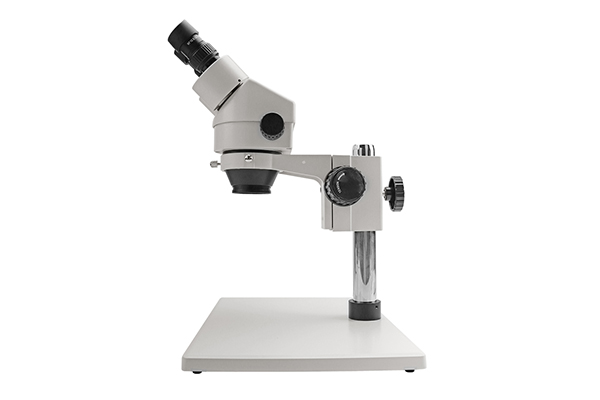

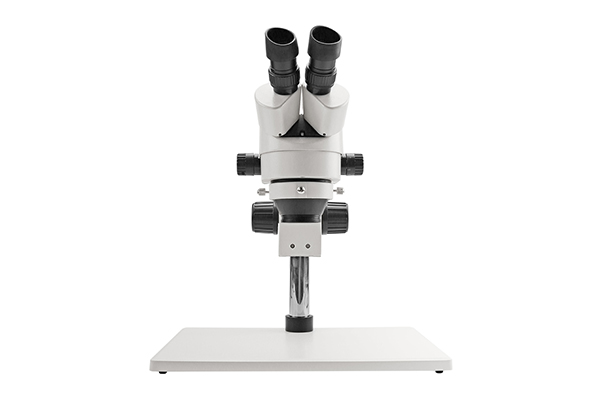

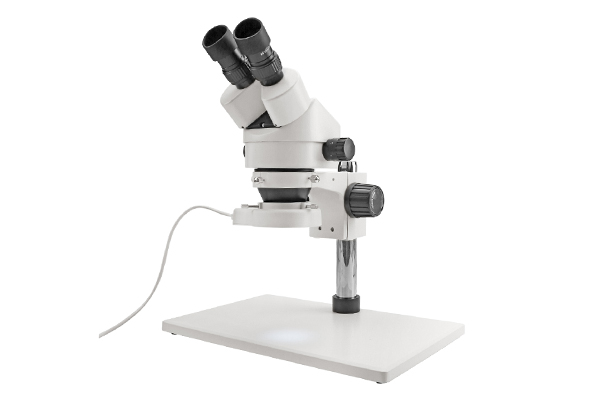

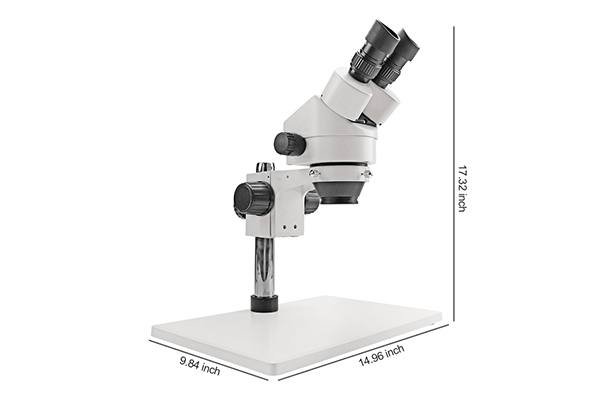

SZM45-B1 stereo microscope

Parameters:

Observation head tilt angle: 45 °

Eyepiece: WF10 high eye point eyepiece

Objective lens: 0.7X~4.5X continuous zoom objective lens

Tube: binocular

Magnification: 7X~45X3.5X~180X (using auxiliary objective lens)

Pupil distance adjustment: range 54-75mm

Visual Range Adjustment: Both visual acuity can be adjusted within a range of+5 diopters

Electric light source: no light source

Working distance: 100mm

Optional parts: three-way/camera tube; 20X high eye point eyepiece; Electric light source (upper light source illumination/upper and lower light source illumination)
