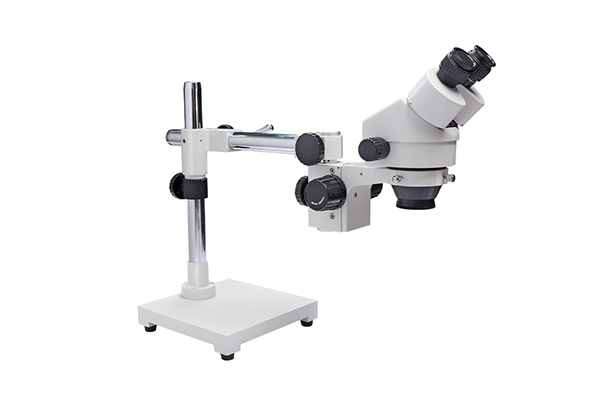

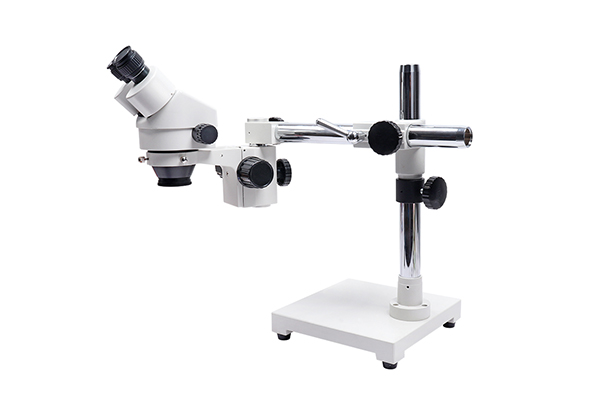

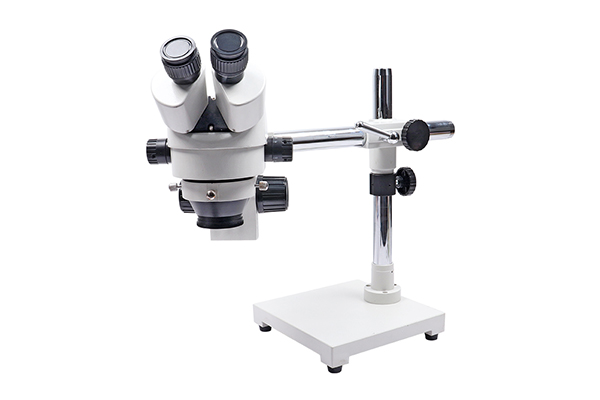

SZM45-STL1 Single arm Stereoscopic Microscope

Parameters:

Magnification: Standard configuration: 7X~45X, optional eyepiece and auxiliary objective can be expanded to 3.5X~180X continuous zoom

Eyepiece: Standard configuration: 10X/20mm, large field of view, wide angle, high eye point, providing convenience for observers wearing glasses

Objective: 0.7X~4.5X continuous zoom objective, with a zoom ratio of 6:4:1

Auxiliary objective lens: optional 0.5X, 0.7X, 0.75X, 1.5X, 2X Observation head: 45 ° tilt, 360 ° rotation, pupil distance 54-76mm; Bilateral perspective adjustment (± 5); Hinged double self

Focusing bracket: A1 focusing bracket handwheel with adjustable tightness, lifting range of 50mm

Base: STL1 single arm universal bracket

Lighting: Various fluorescent and LED ring lights can be optionally selected
