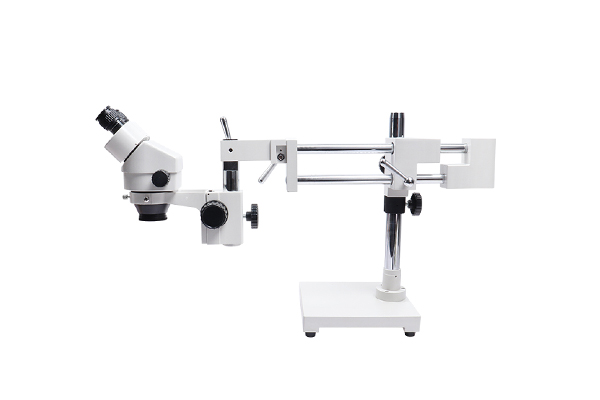

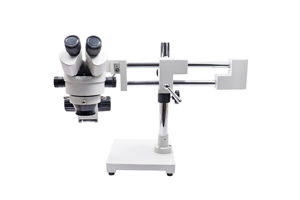

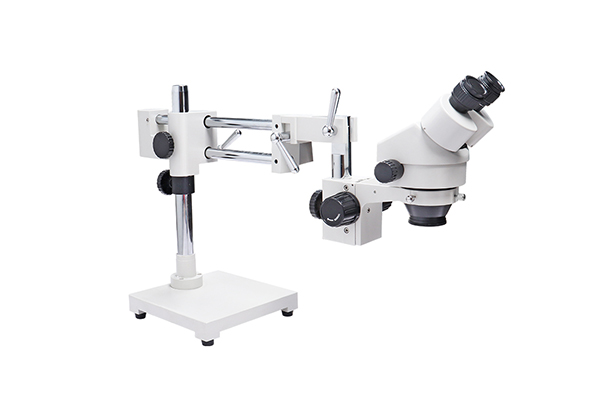

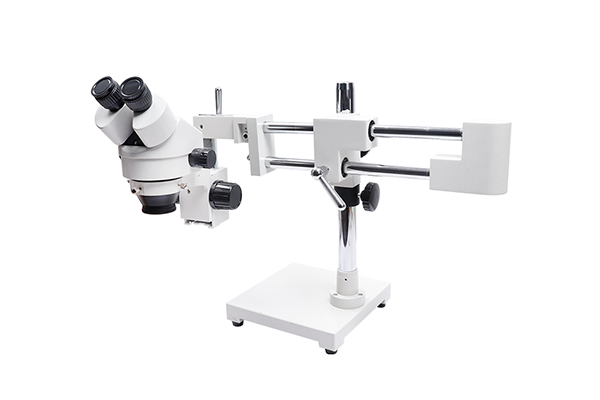

SZM45-STL2 Dual arm Stereoscopic Microscope

Parameter:

Magnification: Standard configuration: 7X~45X, optional eyepiece and auxiliary objective can be expanded to 3.5X~180X continuous zoom.

Eyepiece: Standard configuration: 10X/20mm, large field of view, wide angle, high eye point, providing convenience for observers wearing glasses

Objective: Continuous bending magnification objective with a magnification ratio of 0.7X~4.5X, with a magnification ratio of 6:4:1

Auxiliary objective lens: optional 0.5X, 0.7X, 0.75X, 1.5X, 2X Observation head: 45 ° tilt, 360 ° rotation, pupil distance 54-76mm; Bilateral perspective adjustment (+5); Hinged double self

Focusing bracket: A1 focusing bracket handwheel with adjustable tightness, lifting range of 50mm

Base: STL2 dual arm universal bracket

Lighting: Various fluorescent and LED ring lights can be optionally selected.
