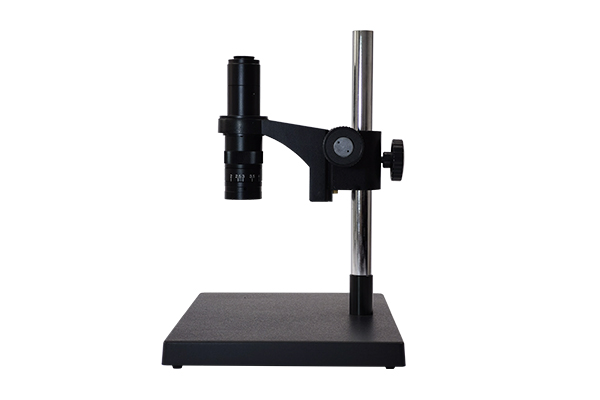

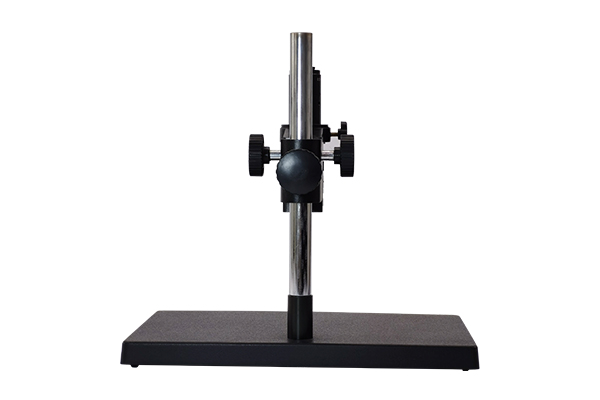

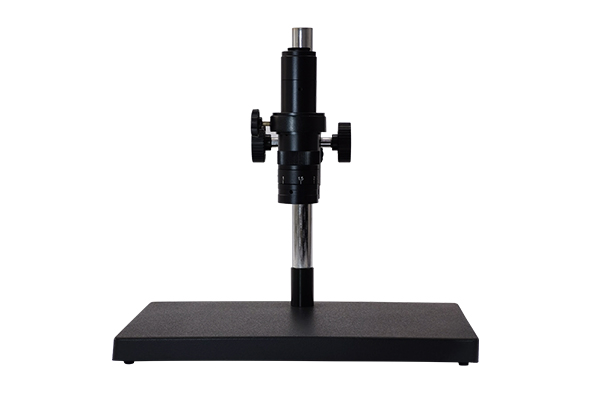

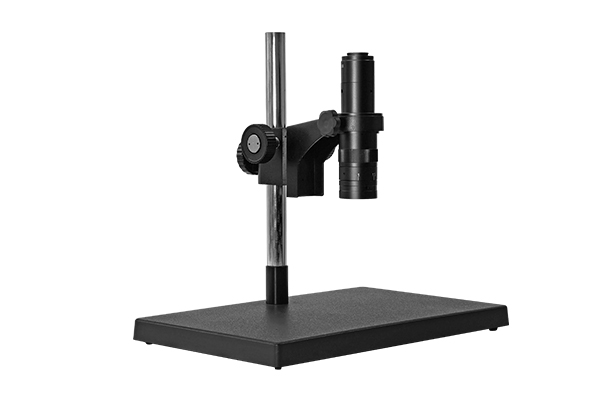

XDS-10A

The XDS-10A series of television microscope is zoom monocular microscope matching with high definition color CCD and TV (or) display which adopts the unique stray light and large depth of field with clear imaging, strong three-dimensional sense and long distance, wide field of vision and other characteristics. The microscope is designed of 0.3X, 0.5X, 1X, 2X series supplementary objective and 0.35X, 0.5X, 1X series camera eyepiece. According to the different venues, multiple external lighting device, XY mechanical stage, image processing system can be chosen.

Components of the television microscope for imaging amplification: supplementary objective, main object lens, photography eyepiece and CCD camera, monitor. The first three is for optical amplification, the latter two is for digital amplification.

Maximum working distance: 320mm.

Maximum objective field diameter: 90.7mm.

Hand wheel focusing range: 65mm.

Size of the mirror support interface: diameter 25mm-50mm, the support center distance: 140mm.

Illumination: vertical lighting, 8W round fluorescent lamp, round LED lamp (optional).
