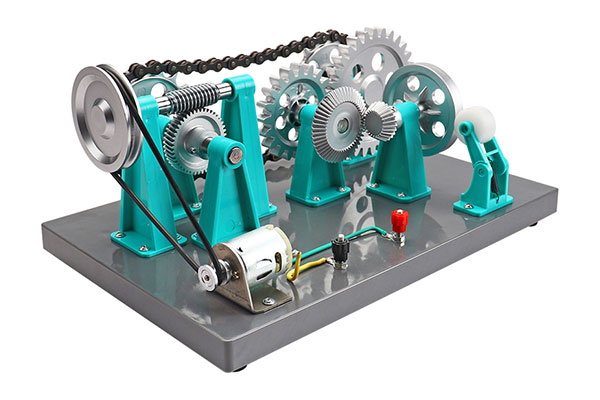

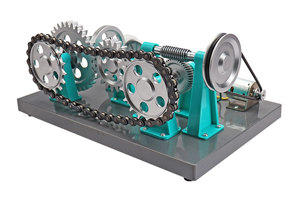

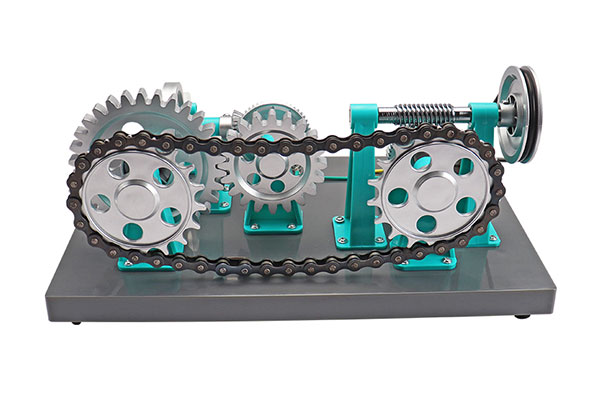

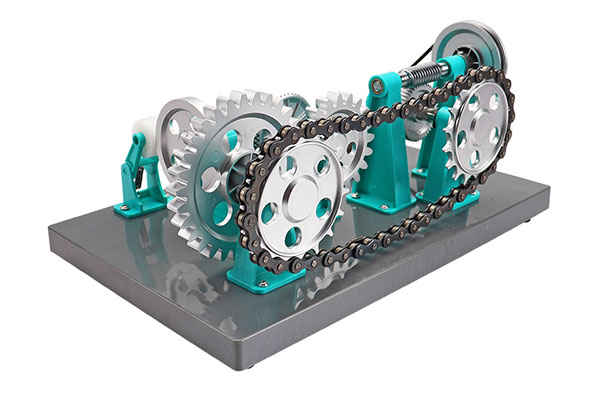

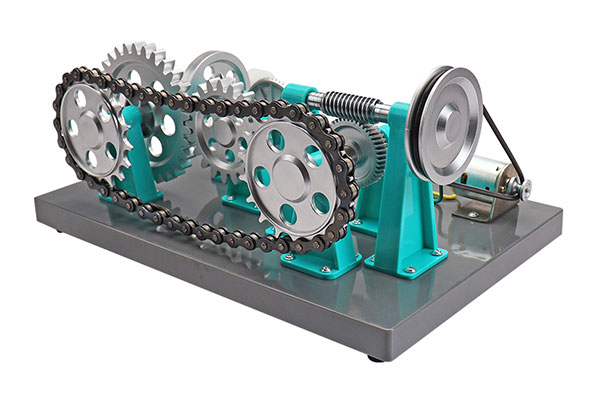

31032 Mechanical transmission model

Instrument Description:

● The Instrument Is Electrically Driven, Featuring Various Transmission Modes Including Belt Drive, Screw Drive, Chain Drive, Gear Drive, Worm Gear Drive, And Friction Wheel Drive.

● Model Outer Dimensions: 305 × 200 × 140 Mm; Model Start-Up Voltage: 4.5~8V.

● Main Component Part Dimensions:

　○ Belt Drive: Large Belt Pulley Size: φ60 × 10 Mm, Small Belt Pulley Size: φ14 × 10 Mm.

　○ Screw Drive: Screw Rod Size: φ15 × 80 Mm, Nut Size: φ42 × 12 Mm.

　○ Chain Drive: Sprocket Size: φ80 × 8 Mm.

　○ Gear Drive: Large Gear Size: φ95 × 10 Mm, 30 Teeth, Small Gear Size: φ65 × 10 Mm, 20 Teeth.

　○ Worm Gear Drive: Worm Wheel Size: φ50 × 8 Mm, Number Of Teeth: 50, Worm Head Count: 25.

　○ Friction Wheel Drive: Large Friction Wheel Size: φ64 × 10 Mm, Small Friction Wheel Size: φ23 × 12 Mm.
